Field of View (CT)
(cm × cm)
(Diam. × Height) | 18 × 16.5(Adult, Stitch), 16 x 9(Child, Non-Stitch)
10 x 14.5(Child, Stitch), 10 x 8(Child, Non-Stitch)
Free FOV (min. 3 × 3) |
|---|
| Voxel Size (CT) (mm) | 0.10, 0.15, 0.20, 0.25, 0.30 |
|---|
| Focal Spot (mm) | 0.5 |
|---|
| Reconstruction Time | min. 10 s (standard recon, MAR off) |
|---|
| Patient Alignment | Vertical Column: Electric motion
Column: Electric motion
Temple Support: Motion |
|---|
| Control Device | Alignment : Touch Panel
Exposure & Imaging Acquisition: Workstation |
|---|
| Install | Standing |
|---|
| Tube Voltage | 60 kV to 90 kV |
|---|
| Tube Current | 4 mA to 10 mA |
|---|
| Patient Position | Standing (Wheelchair accessible) |
|---|
| Detector Type | CT & Panorama | TFT: a-Si |
|---|
| One-Shot Type Cephalo | TFT: a-Se |
|---|
| Scan Type Cephalo | CMOS |
|---|
| Gray Scale | CT & Panorama | 16 bits |
|---|
| One-Shot Type Cephalo | 14 bits |
|---|
| Scan Type Cephalo | 14 bits |
|---|
Dimensions (W × D × H)
(mm × mm × mm) (in × in × in)

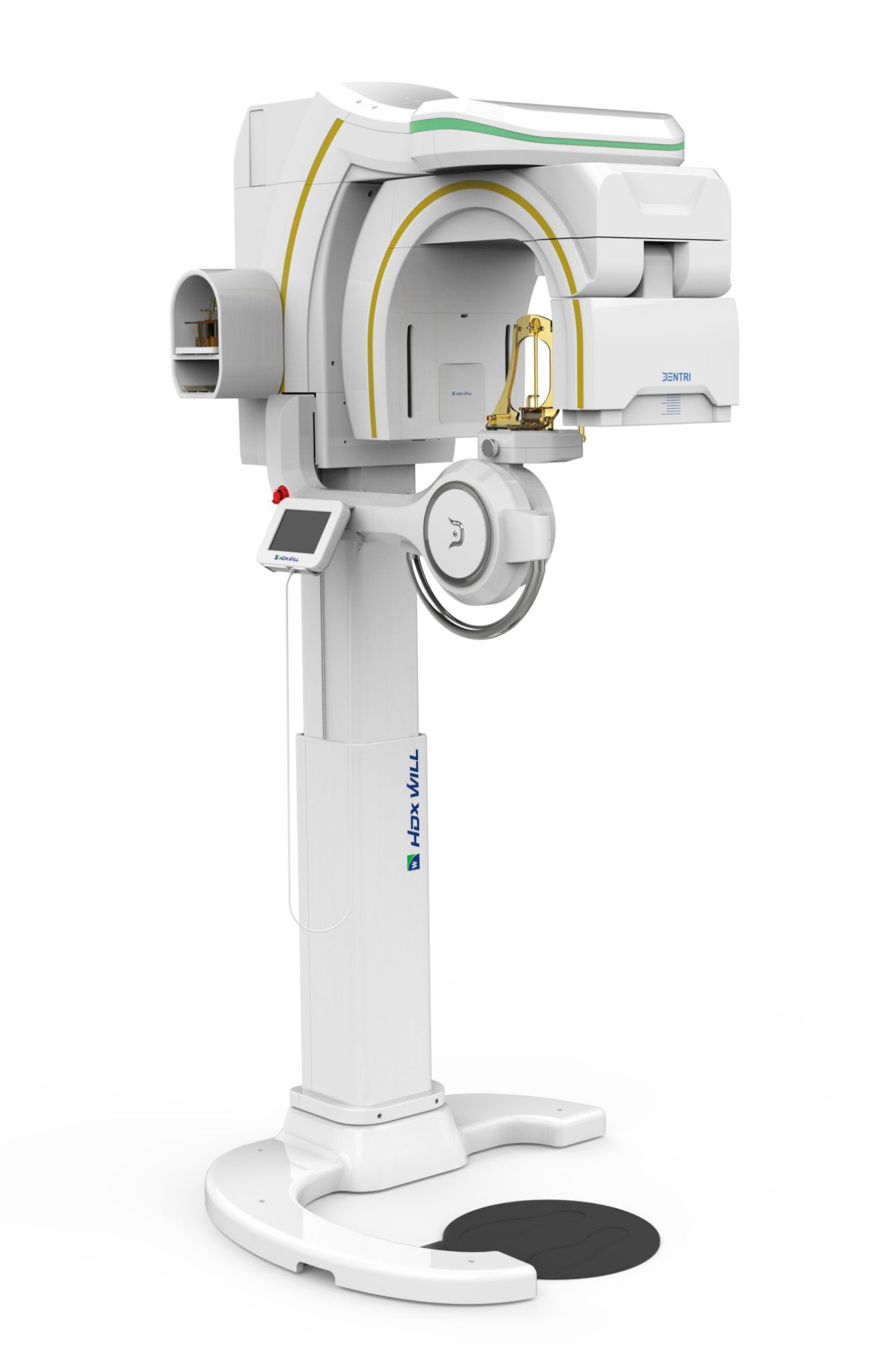

(Tolerance: 5 %) | | DENTRI Max: 1201 × 1361 × 2455 mm (47.3" × 53.6" × 96.7") | | DENTRI C Max: 1999 × 1361 × 2455 mm (78.7" × 53.6" × 96.7") | | DENTRI S Max: 1941 × 1361 × 2455 mm (76.4" × 53.6" × 96.7") |
|
|---|
System Weight
(Tolerance: 10 %) | | DENTRI Max: 243 kg (536 lbs) | | DENTRI S Max: 270 kg (595 lbs) | | DENTRI C Max: 260 kg (573 lbs) |
|
|---|
